FV-2010NT FV-2010PL

FV-2010NT FV-2010PL FV-2010NT FV-2010PL

FV-2010NT FV-2010PL is an image clarifying unit for analog signals that enhances the visibility of objects by clarifying low contrast moving images by our original technology "ForteVision".
It corresponds also to the input image which was divided into 4 by a switcher etc.
Corresponding to 19inch EIA rack.

Main features

Main features Automatic adaptation to various external light conditions such as low illumination, backlight, fog and blurred.
Built-in noise filter for reducing noise in low-brightness area.
It corresponds also to the input image divided into 4 by switcher etc.
Original image output function when power is off.
Remote control function by serial communication (RS-232C).
Corresponding to 19inch EIA rack.

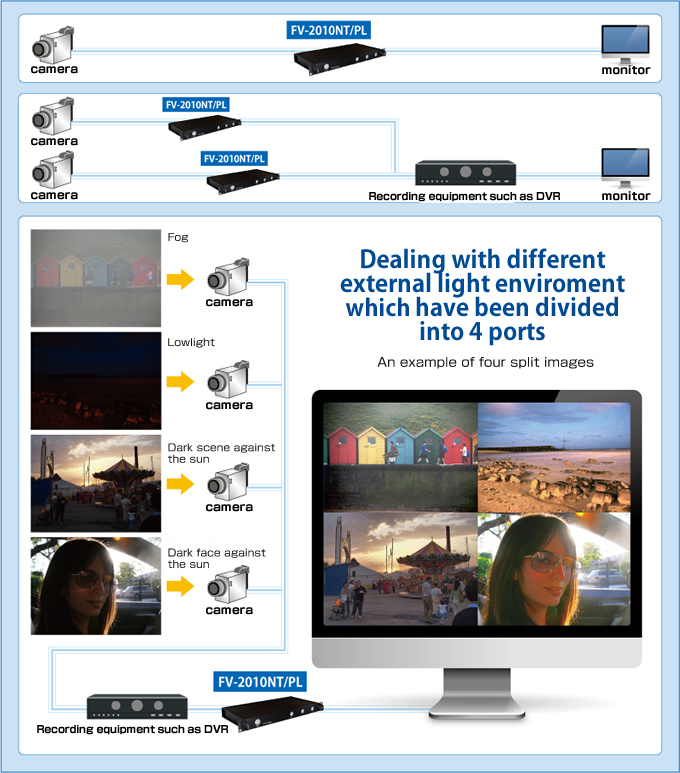

Connection example

Connection example

Main Specifications

項目 FV-2010NT FV-2010PL
I / O video standard NTSC system PAL system
I / O signal format Analog composite
I / O signal terminal BNC connector
Pass-through function When the power is off, input is pass-through output
Remote control Serial communication (RS-232C)
Power-supply voltage DC 12 V (AC adapter included)
Power consumption 3W
Environmental condition Temperature: 0 ° C to 50 ° C Humidity: 20% to 80% (non condensing)
Mass 2.4 kg (excluding AC adapter)
External dimensions 483mm(W) x 200mm(D) x 44mm(H)
*Product specifications are subject to change without notice.
